ThreadTracer 4 - Online Guide   Switching Spindle Auto Clearance

   Use mouse and click in the interface to jump down to the relevant section for any spesific element ( tabs,buttons or options )
ACME ACME ACME ACME ACME ACME ACME tooling tool_presetter tool_geometry face_relief b-axis diamond style delay est_runtime rough_cut fin_cut material do_rough do_rough process online_guide save_data do_it

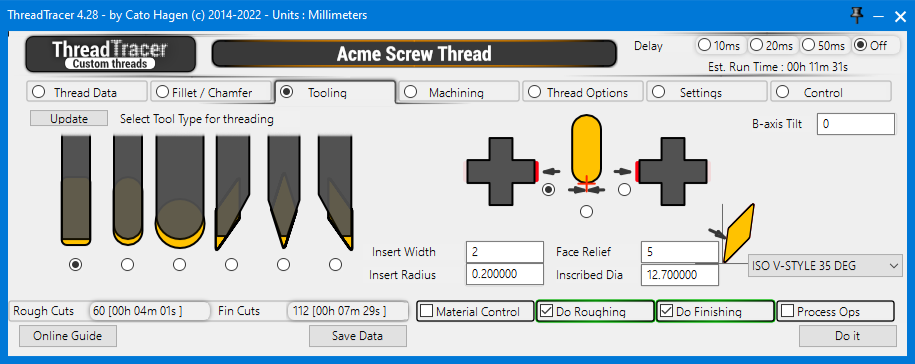

Acme Thread \\ Tooling (Tab 3):

Tooling (Back to top)

Select what type of tool to use for machining the thread.


Tools shown in the window will be correctly represented for Righthand and Lefthand threads, click the Update button if they are not shown correctly.

Supported tools

  • Grooving tool, rectangular with radius on corners.
  • Grooving tool, with full radius.
  • Round Insert (Button Insert).
  • Diamond Insert - Pointing towards the main spindle.
  • Diamond Insert - Pointing straight down.
  • Diamond Insert - Pointing away from the main spindle. (Points towards the sub-spindle)

  • Tool Presetter (Back to top)

    Use the 3 radio buttons to select where on the insert/tool presetter you measured the Z offset for the tool. (right/left side or center)

    Tool presetter Z axis touch off point : Left Side
    Tool Z axis Zeropoint : Center
    Tool presetter Z axis touch off point : Right Side

    Tool Geometry (Back to top)

  • Insert Width : Enter the insert width for grooving tools. For diamond tools this input box is disabled.
  • Insert Radius : Enter the insert corner tip radius. On diamond tools this is the tip radius.

  • Tool Geometry & Tool Parameters

    Face Relief (Back to top)

    Enter the insert face relief and Inscribed Diameter for diamond tools. A standard holder will usually hold the insert with a 5 degree face relief.

    Face Relief

    Diamond Style (Back to top)

    From the dropdown, select diamond style for insert. ISO V-STYLE 35°, D-STYLE 55° and C-STYLE 80° are supported.
    Its important to select the correct style, Face Relief and Inscribed Diameter as the geometry of the tool are used to detect tool gouging against the thread profile.

    ISO V-STYLE 35°, D-STYLE 55° and C-STYLE 80° Diamond Style Inserts

    Generated tools in GibbsCAM (link) (Back to top)

    ThreadTracer will always build a new formtool with the shape defined by insert width and insert radius.
    If a diamond tool is selected, it will build this tool with style selected, insert radius and face relief.


    If you need to define your own tool, its important to set the same tool parameters as insert width and insert radius.
    You can define your own tool by editing the existing tool built by ThreadTracer, as long as the Comment is not changed. ThreadTracer will continue to use this tool when creating new threading operations.

    You can also copy the tool comment line from a generated tool into an existing tool. Then delete the generated tool and create GibbsCAM operations for the thread and it will use the same tool.
    This way you can define your tool to be used in multiaxis machines with multiple tool groups and sub spindle.

    Tool Comments built by ThreadTracer always look similar like this : ThreadTracer EXT TG=0 HAND=R GROOVE CW=3 R=1.5 PRESET=1

    ThreadTracer  = plugin name
    EXT           = external thread
    TG=0          = toolgroup
    HAND=R        = right hand
    GROOVE        = tool type
    CW=3          = insert cutting width
    R=1.5         = insert radius
    PRESET=1      = tool presetter position



    B-axis machines and toolholder orientation (Back to top)

  • B-Axis Tilt : Set the B-axis tilt in degrees. For B-axis machines, the angle set here will be used when creating the tool for machining.
  •     You may experiment here what values to set with a B-axis machine, if the tool requires the B axis to be rotated 45° for the tool to be correct,  the value in ThreadTracer may be 45° (or -45°)



    Control buttons at the bottom (Back to top)

    rough_cut fin_cut material do_rough do_fin process online_guide save_data do_it
    Use the buttons at the bottom of the ThreadTracer dialog to turn on or off actions to make.

    Rough Cuts (Calculated) (Back to top)


    Holds information of the calculated Rough Cuts in the current programmed thread. 'amount of cuts' [ hh:mm:ss ]
    Rough Cuts 60 [ 00h 04m 01s ] means roughing the current programmed thread requires 60 threading passes with an estimated machining time of 4 minutes and 1 seconds.

    Fin Cuts (Calculated) (Back to top)


    Holds information of the calculated Finishing Cuts in the current programmed thread. 'amount of cuts' [ hh:mm:ss ]
    Fin Cuts 112 [ 00h 07m 29s ] means finish machining the current thread requires 112 threading passes with an estimated machining time of 7 minutes and 29 seconds.

    Est. Run Time (Calculated) (Back to top)


    Est. Run Time shows the calculated Run Time for machining, for all Roughing and Finishing passes combined.

    To improve the time estimate, you can set your machine tool Rapid Feedrate in the Settings tab. Your machines rapid feedrate can be found in the parameters of the machine.
    As there are as many rapid moves as feed moves in machining a thread, setting the correct rapid feedrate will allow for a more precise time estimate.

    If you work in metric, set the Rapid Feed in millimeters/minute. If you work in inch, set the Rapid Feed in inches/minute.
    Default values in ThreadTracer are 12000 millimeters/minute for GibbsCAM in metric and 500 inches/minute for GibbsCAM set to inches.


    Material Control ( Checkmark On/Off ) (Back to top)

  • Material Control : This will enable material control, and keep all threading cuts within the set limits. By default the limits are always set to Major and Minor diameter.
  • You can change upper and lower machining limits for Material Control in the Machining Tab.

    Do Roughing ( Checkmark On/Off ) (Back to top)

  • Do Roughing : This will enable roughing of the thread. When enabled it will run the roughing of the selected thread with the set tool parameters when pressing the 'Do It' button.
  • Do Finishing ( Checkmark On/Off ) (Back to top)

  • Do Finishing : This will enable finishing of the thread. When enabled it will run the finishing of the selected thread with the set parameters when pressing the 'Do It' button.
  • Process Ops ( Checkmark On/Off ) (Back to top)

  • Process Ops : This will enable the creation of GibbsCAM threading operations for all the calculated thread coordinates when pressing the 'Do It' button.

  • Do It Button (Back to top)

    Everything in ThreadTracer is controlled by the 'Do It' button.
    You can turn on/off options, generate visual geometry, change cut depths, change tool sizes and everything will be recalculated and updated when you press 'Do It'.
    As long as the 'Process Ops' or 'NC Postprocessor' are disabled, no GibbsCAM operations or g-code will be generated.

    Set up the all the roughing and finishing of the thread and only enable 'Process Ops' when everything seems correct. With 'Process Ops' enabled it will generate GibbsCAM threading operations.
    'Do Roughing' and 'Do Finishing' can be set individually. If only 'Do Finishing' is enabled and 'Process Ops', it will only create GibbsCAM threading operations for the finishing passes.

    Click 'Do It' button to start running the options that's selected.

    As ThreadTracer is an external plugin, there is no 'ReDo' button. If you need to change anything you must delete the threading operations in GibbsCAM and create new ones in ThreadTracer.

    If you delete the threading tool instead, all the operations in GibbsCAM that used that tool will be removed, this is often faster than selecting multiple operations with scrolling for deletion.
    ThreadTracer will always create a new tool based on tools settings from the Tooling tab (Tab 3) if no previous tool exists.

    If you are using NC Tracer to generate g-code for machining, Process Ops should be disabled(off) and instead enable 'NC PostProcessor' in Tab 7.


    Save Data Button (Back to top)

    Click 'Save Data' to store the current thread setup into the GibbsCAM program

    It will create a new data entry if its a new thread, after the thread setup is stored the button will change to 'Update Data'.
    This way you can store and update the same thread entry, and not create a completely new thread entry every time the 'Save Data' is clicked.
    If you need to create a new data entry in the GibbsCAM part, you must close ThreadTracer and restart it, and it will now start with a new data entry.


    These lines of text can also be copied and pasted into other GibbsCAM programs, to quickly recreate the thread without typing in all the parameters again.

    Delay Timer (Back to top)


    Visual Delay Timer for in between each calculated thread pass.
    The Delay Timer can be useful for delaying the visual geometry drawn in GibbsCAM. If something seems off, it can sometimes help track the error with a delay and confirm that every pass is done correctly.
    Delay Timer was initially used in development of ThreadTracer, but kept it as it can be useful to slow things down if there is a suspicion of some passes not being laid out correctly.


    Online Guide Button (Back to top)

    Online Guide button will open this ThreadTracer documentation in a new web browser window.
    ThreadTracer will parse information on what thread style and tab thats currently open, and redirects the web browser to the relevant page.
    Clicking the 'Online Guide' while in Stub Acme and Tab 5, will open the documentation for Stub Acme and Tab 5.
