ThreadRef - Thread data and reference plugin for GibbsCAM
ThreadRef Overview
ThreadRef is a thread data calculator and reference plugin for GibbsCAM.

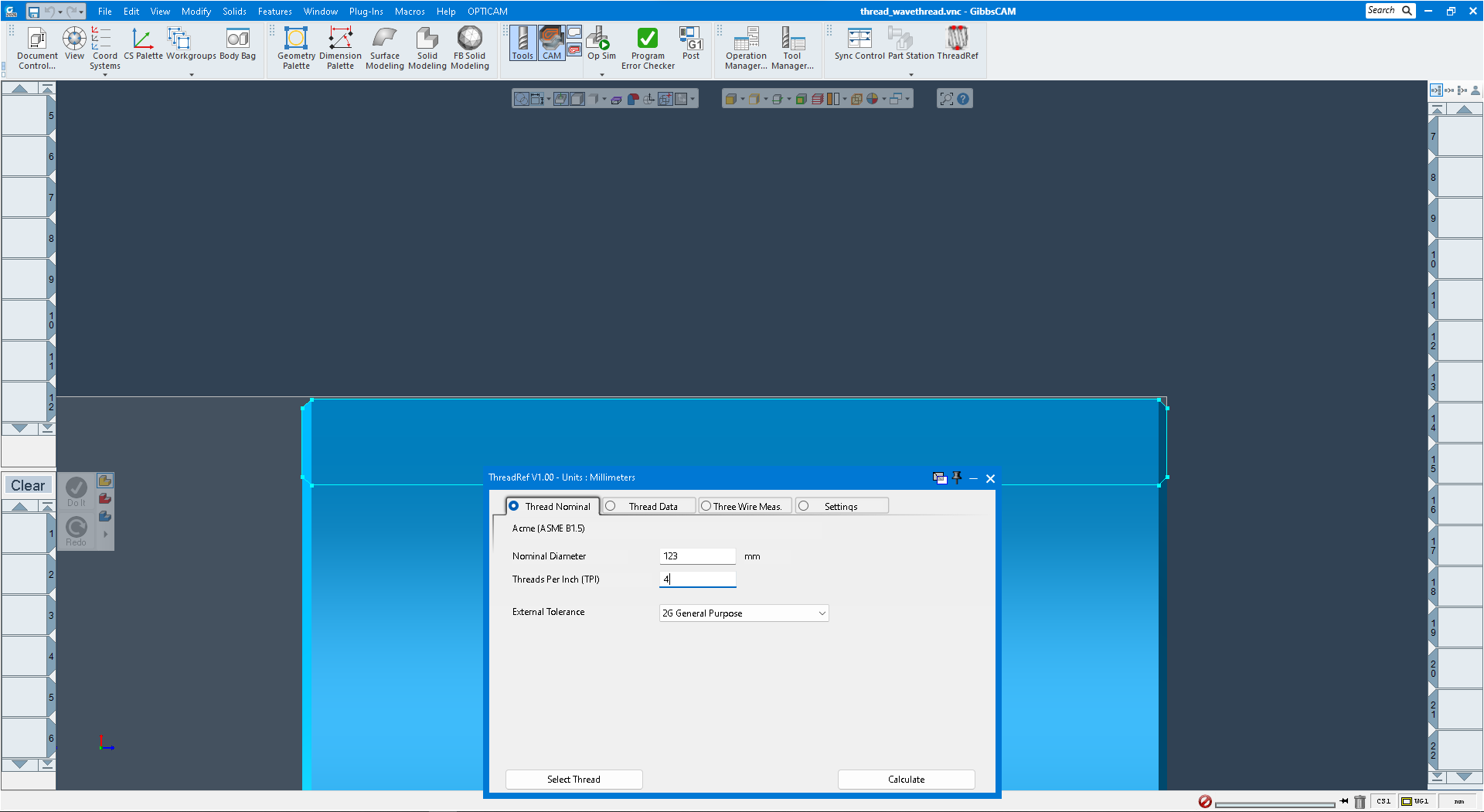

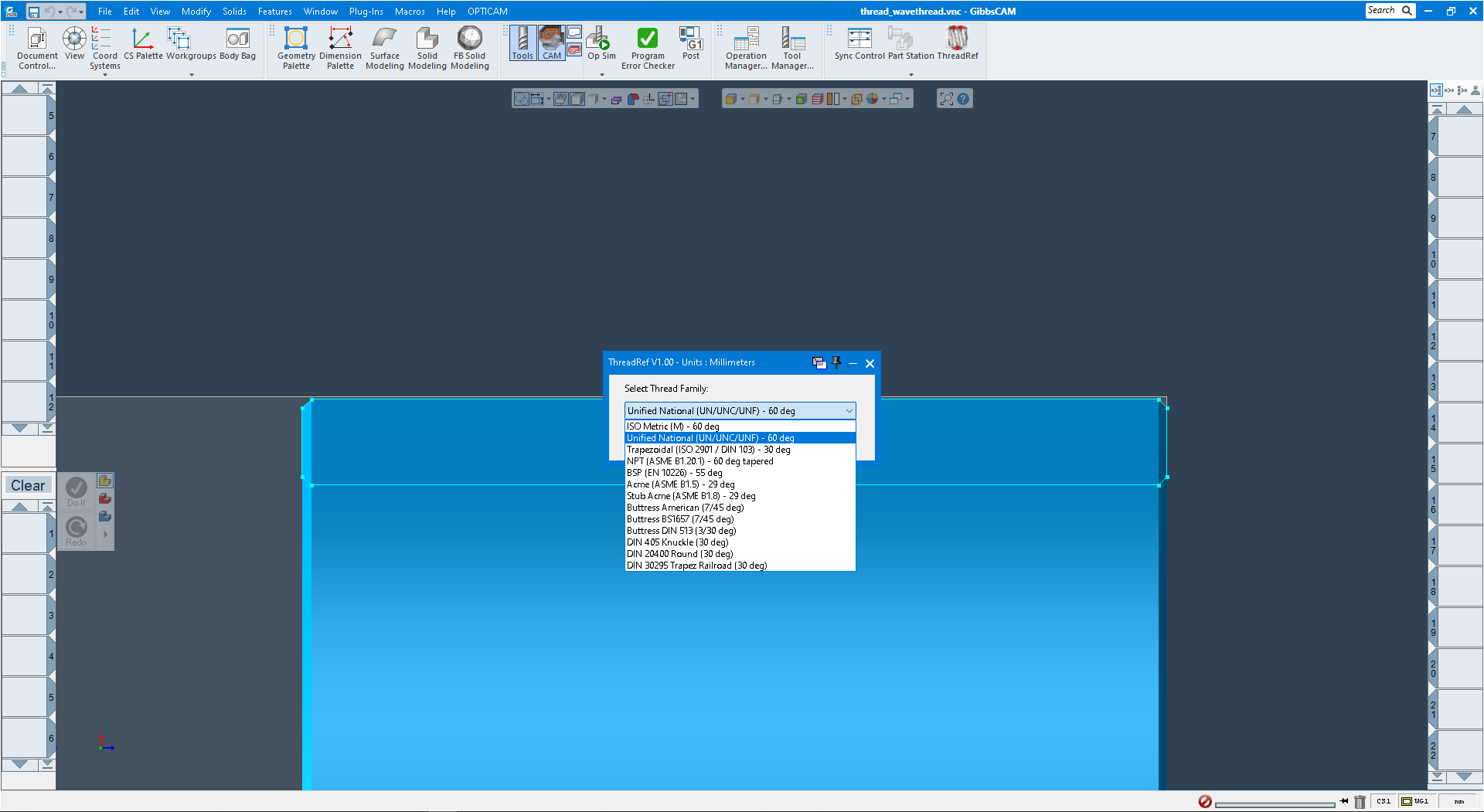

It provides complete thread geometry data, tolerances and 3-wire measurement data for 13 thread standards.
ISO Metric (M) - ISO 261/965 Grades 3-9 (e/f/gG/hH)
Unified National - ASME B1.1 (UN/UNC/UNF) 1A/2A/3A , 1B/2B/3B
BS1657 Buttress British Standard (7/45 deg) Close, Medium, Free
DIN 513 Buttress (3/30 deg) Grades 7/8/9
NPT - ASME B1.20.1 1/16 to 24 (24 sizes)
BSP - EN 10226 1/16 to 6 (15 sizes) Types: R, Rp, Rc
DIN 405 Knuckle Thread, Grades (6/7), (6/7/8), (7/8)
DIN 20400 Knuckle Thread, 10-300mm

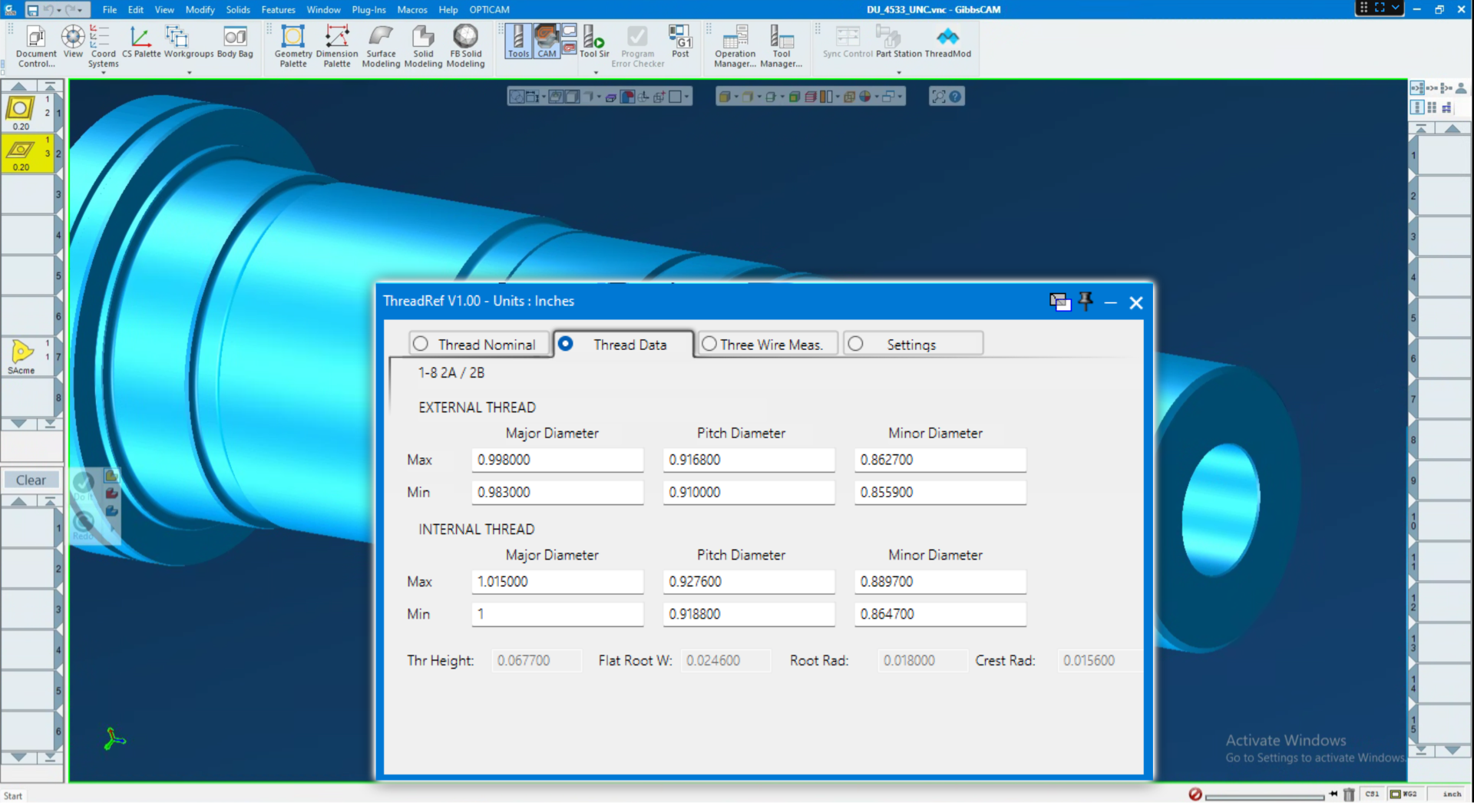

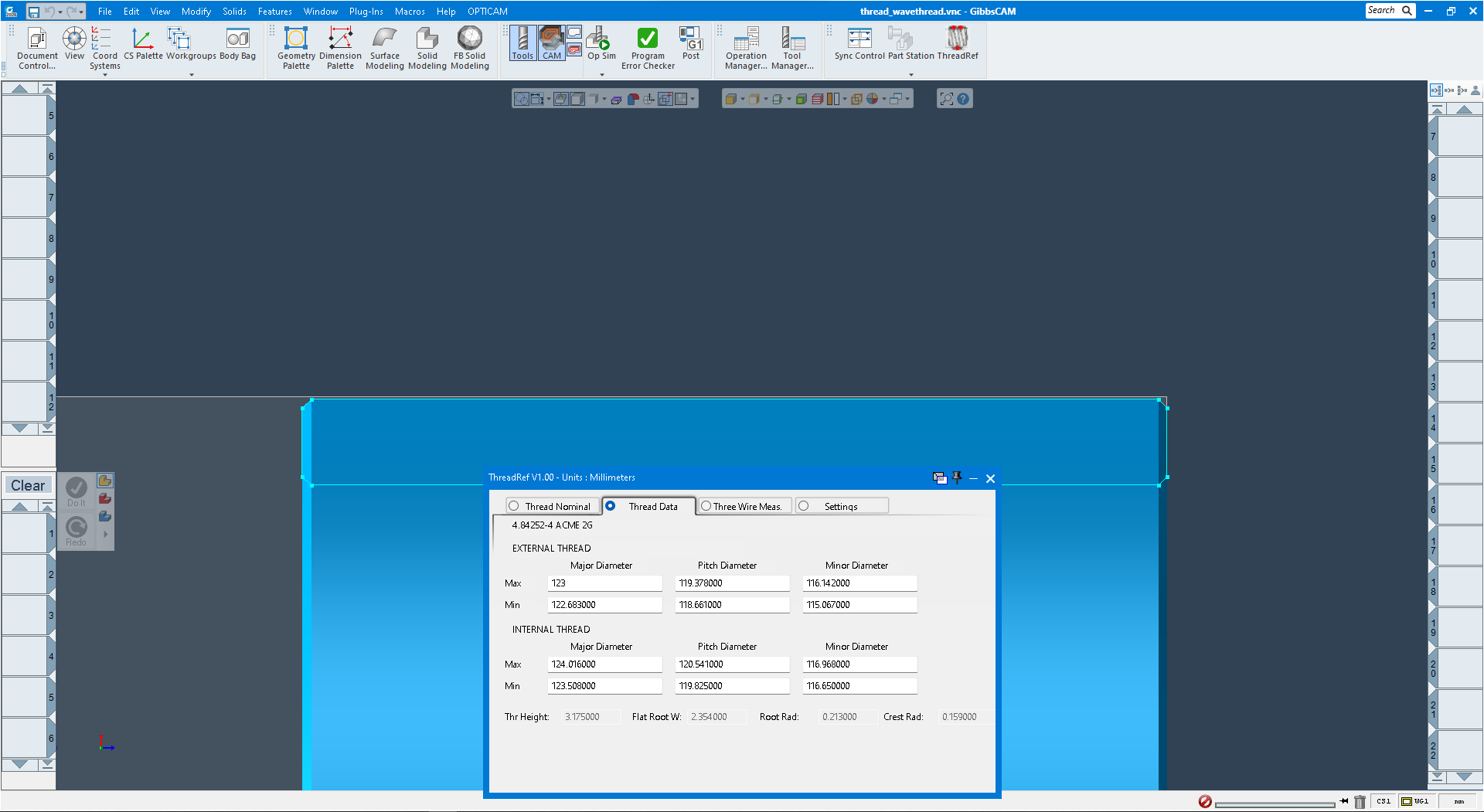

Thread Data Table
Thread data tables for 193 standard thread sizes with instant pitch lookup, thousands of tolerance combinations, plus freeform entry for any custom thread size.
190+ standard sizes (Metric, UN)

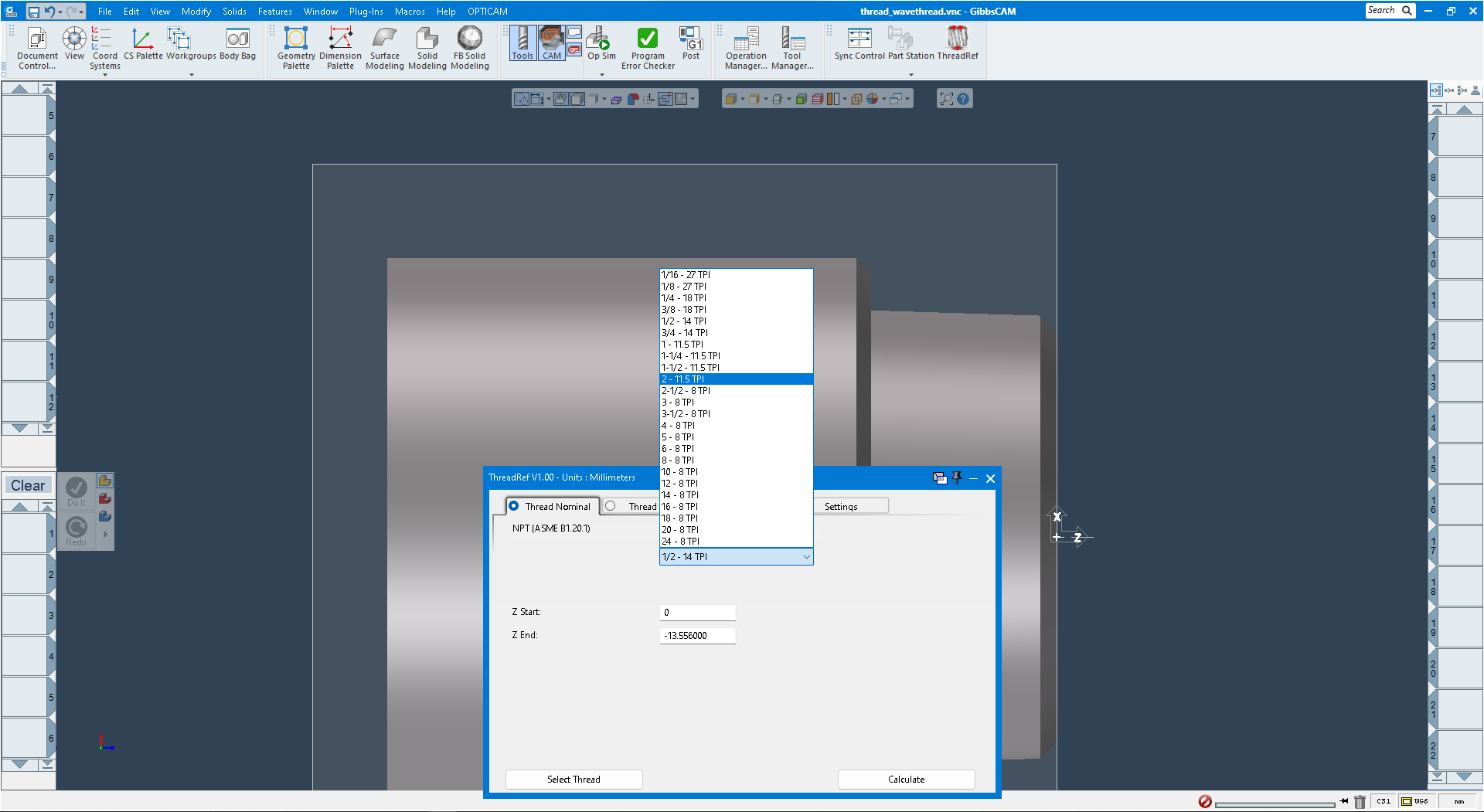

39 pipe sizes (24 NPT + 15 BSP)
3,900+ tolerance variations on standard sizes alone
Unlimited freeform combinations for 8 thread families

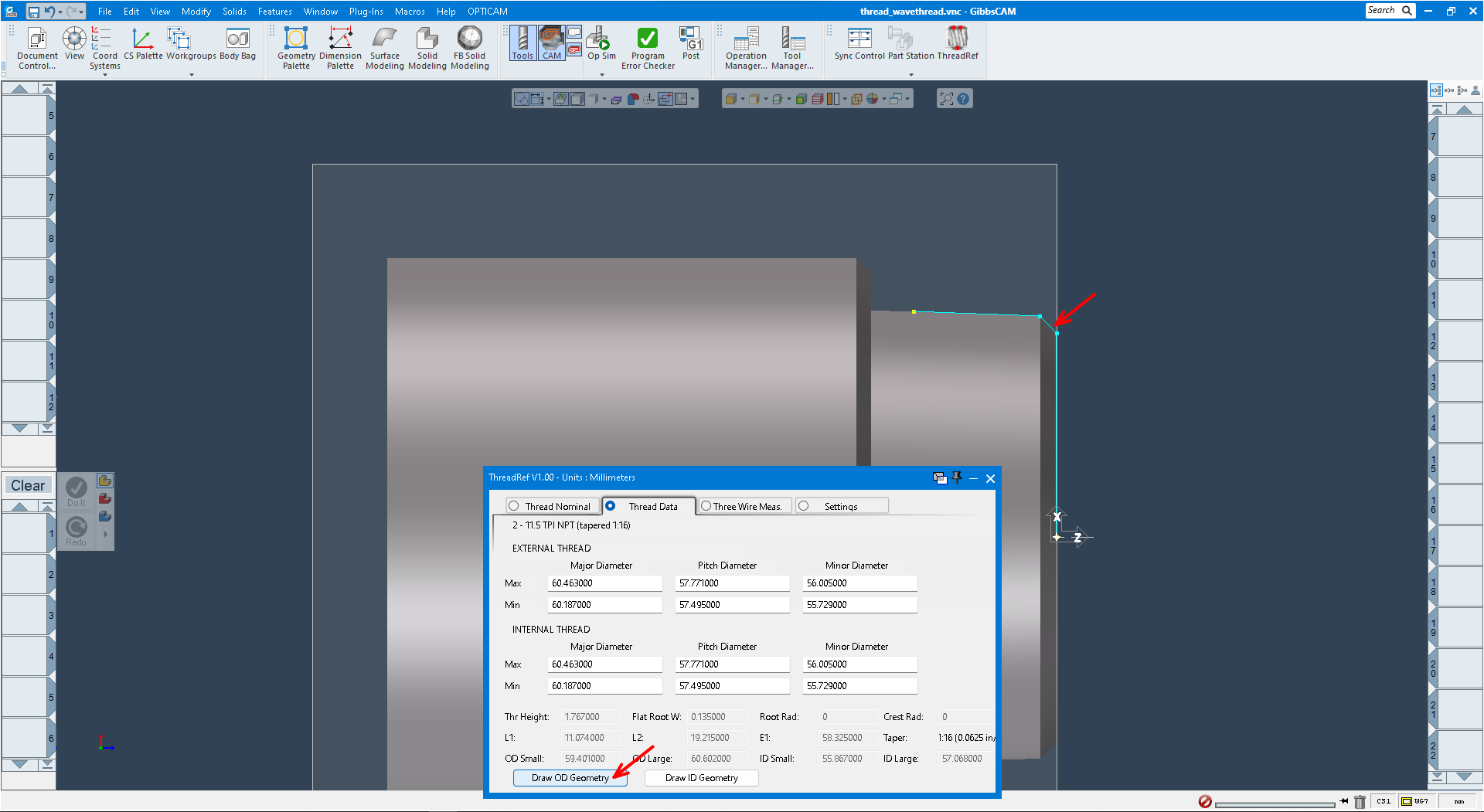

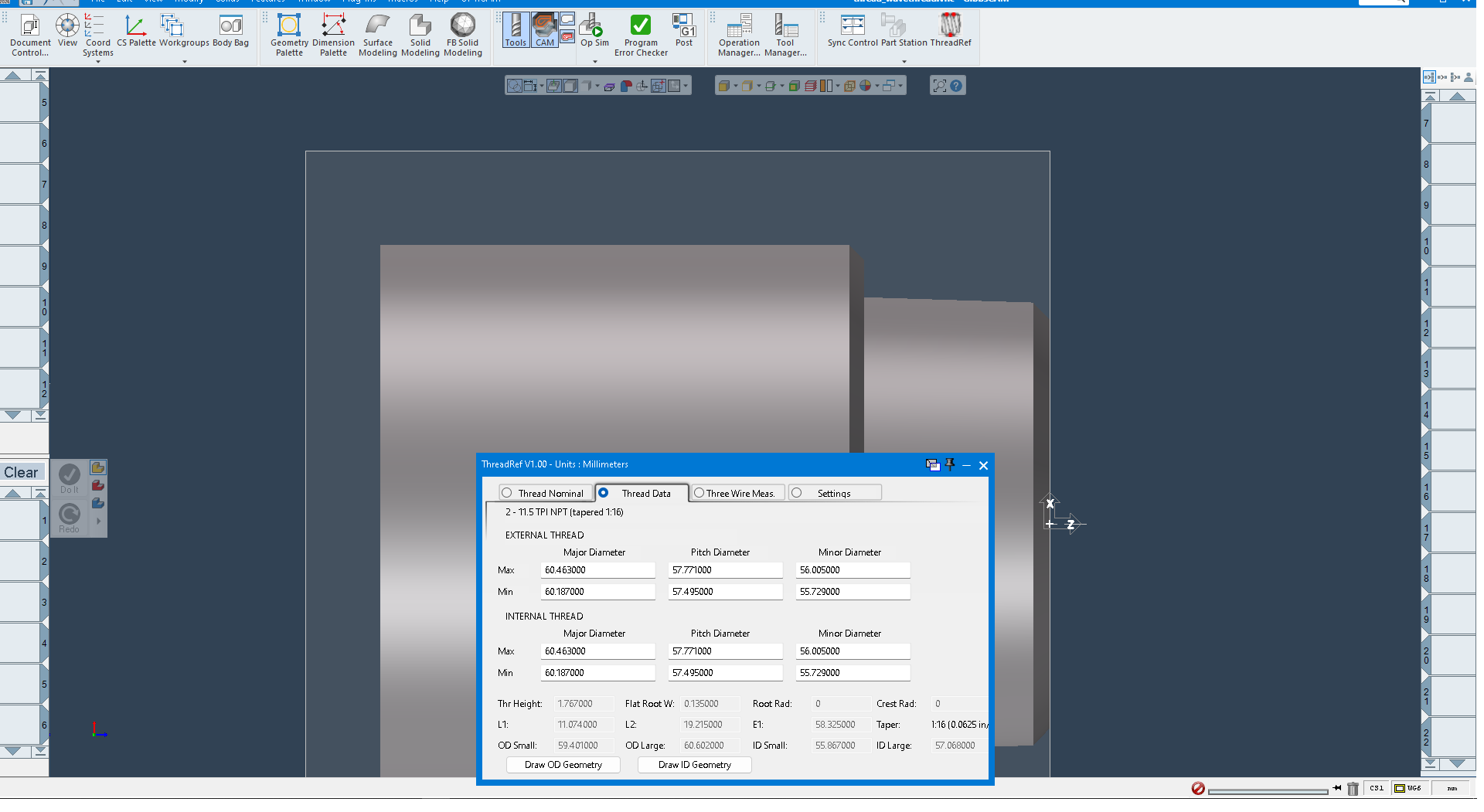

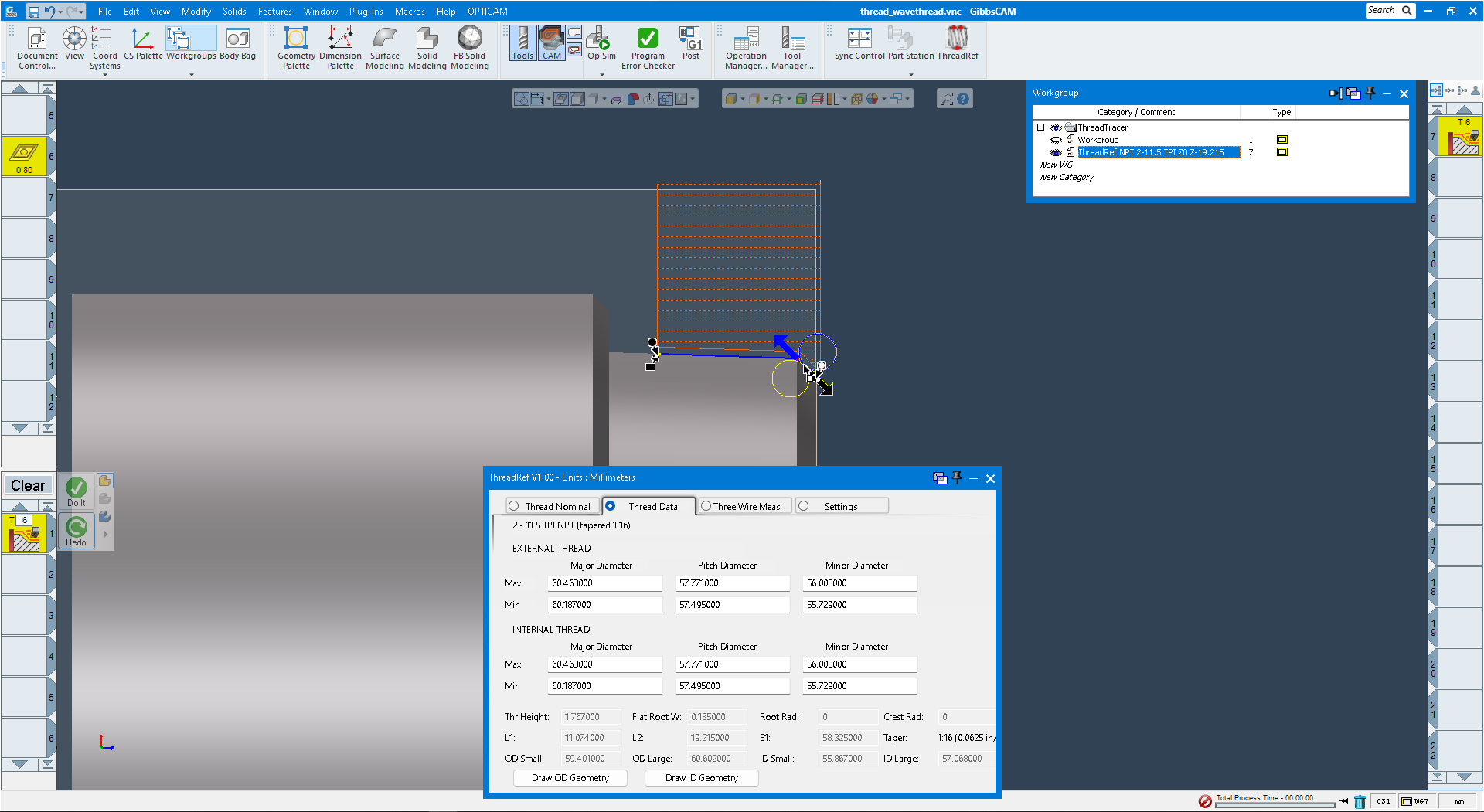

Pipe threadTaper Data (NPT/BSP)
Hand-tight engagement length (L1)
Effective thread length (L2)
Pitch diameter at gauge plane (E1)
OD at small end / OD at large end
ID at small end / ID at large end

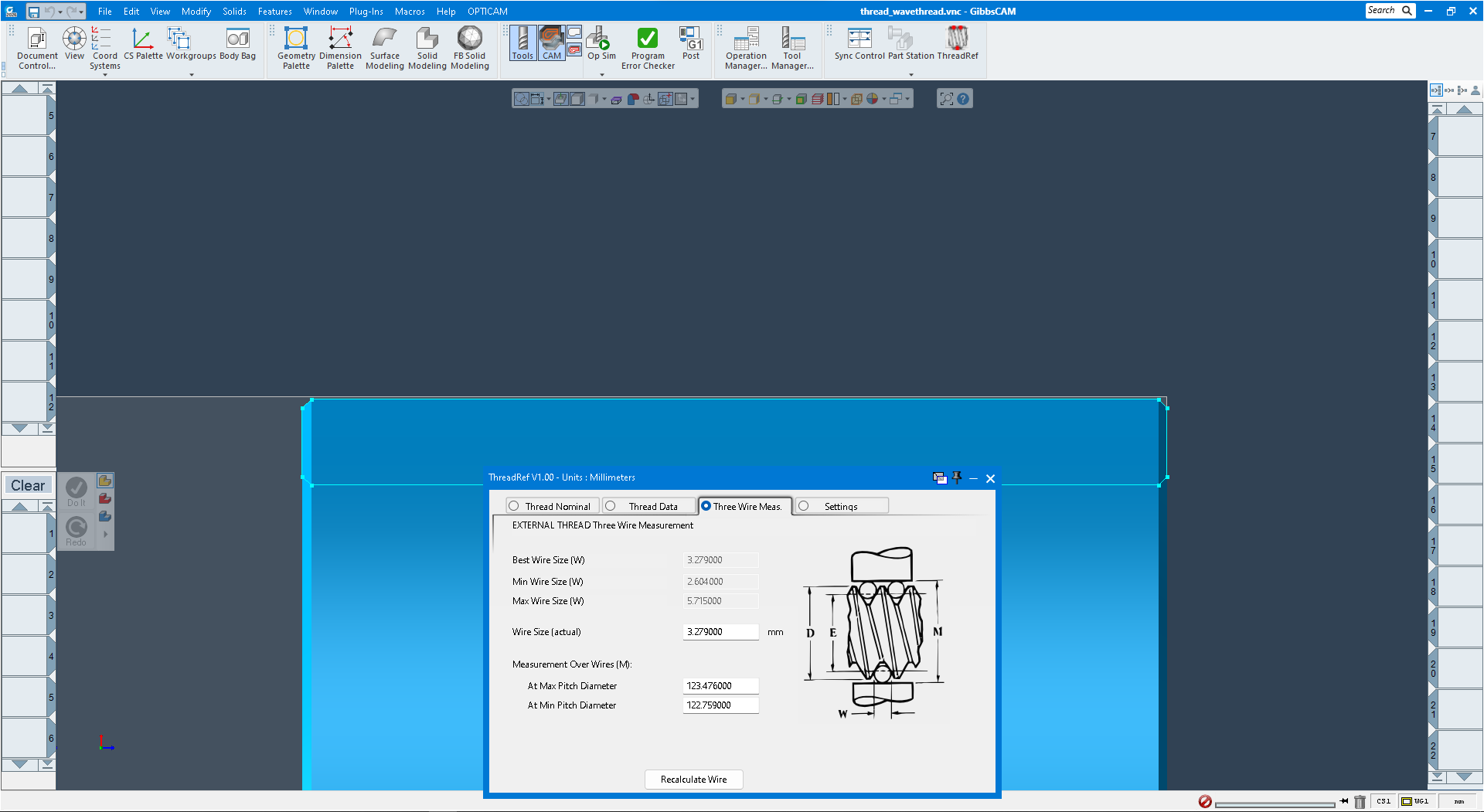

3-Wire Measurement
Useage of precision wires of known diameter (W) and a micrometer to measure the dimension across the wires (M)
Calculates Best wire size for all parallel and symmetrical threads
Calculates acceptable wire range (min/max)
Calculates measurement over wires (M) at max and min pitch diameter
