BallMeasure - Calculator for RTJ ring groove inspection in GibbsCAM

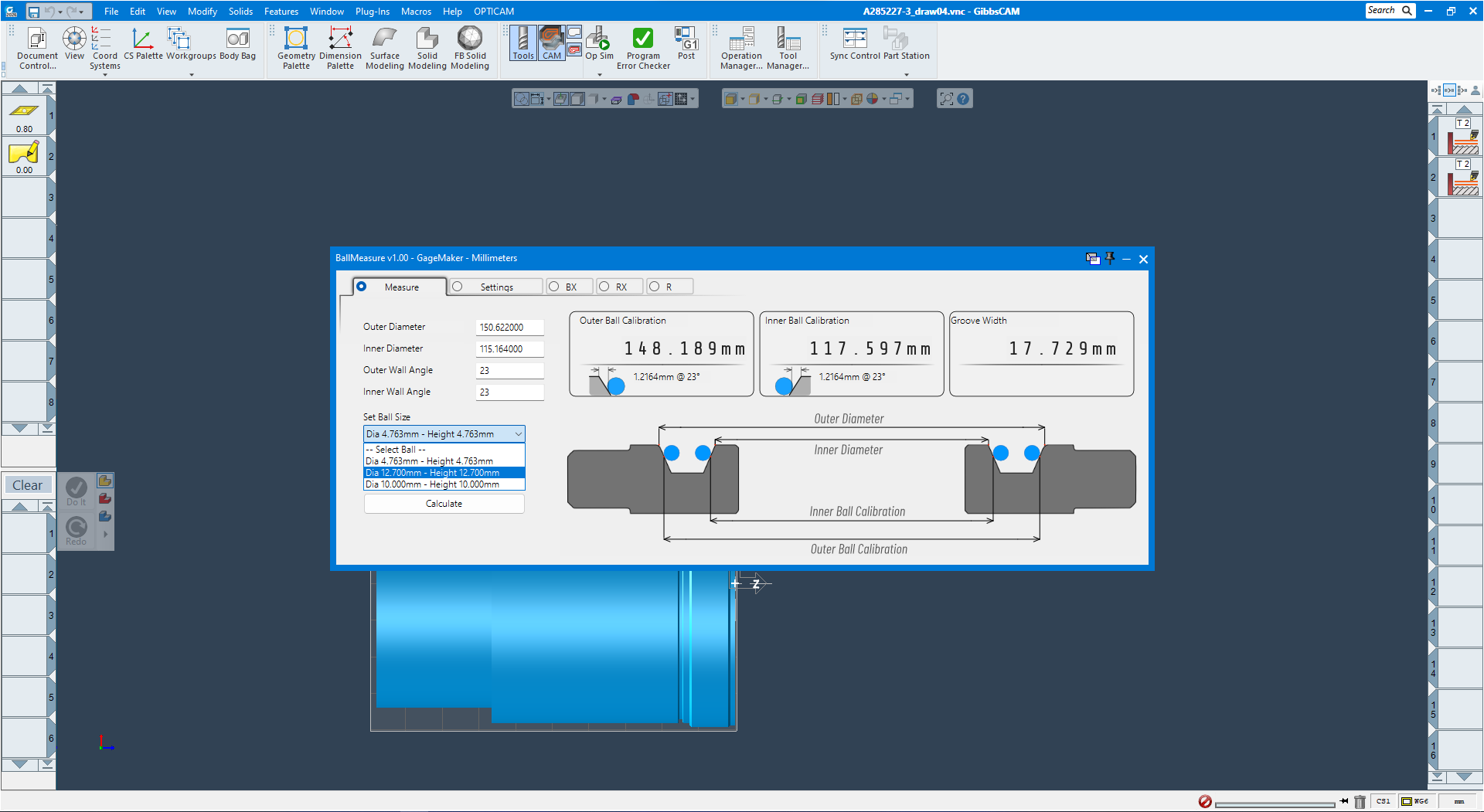

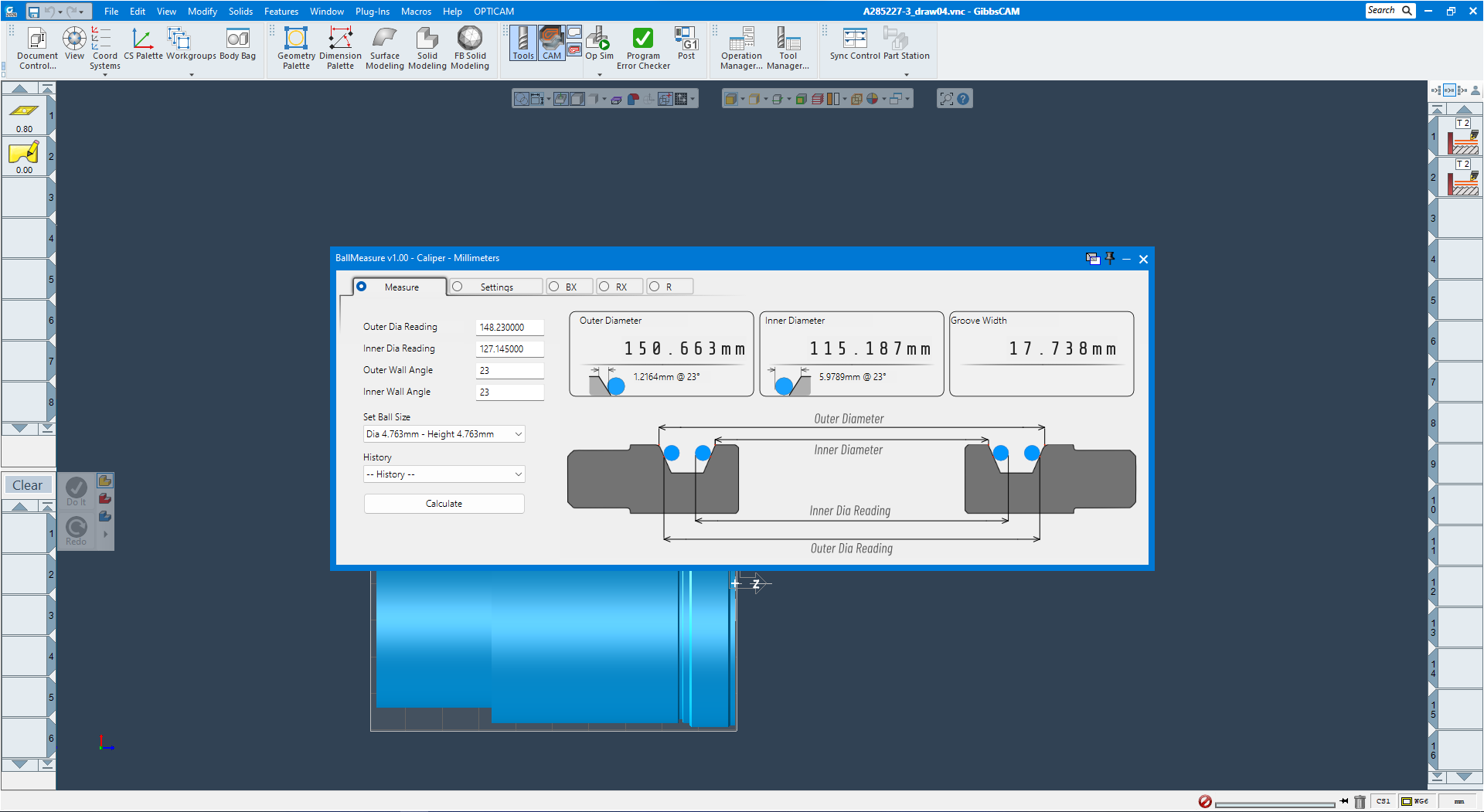

BallMeasure calculates compensation values in API 6A ring groove measurements using digital calipers with precision gauge balls.

BallMeasure have two modes, direct readout digital calipers or for calibrating a GageMaker MRP.

Features

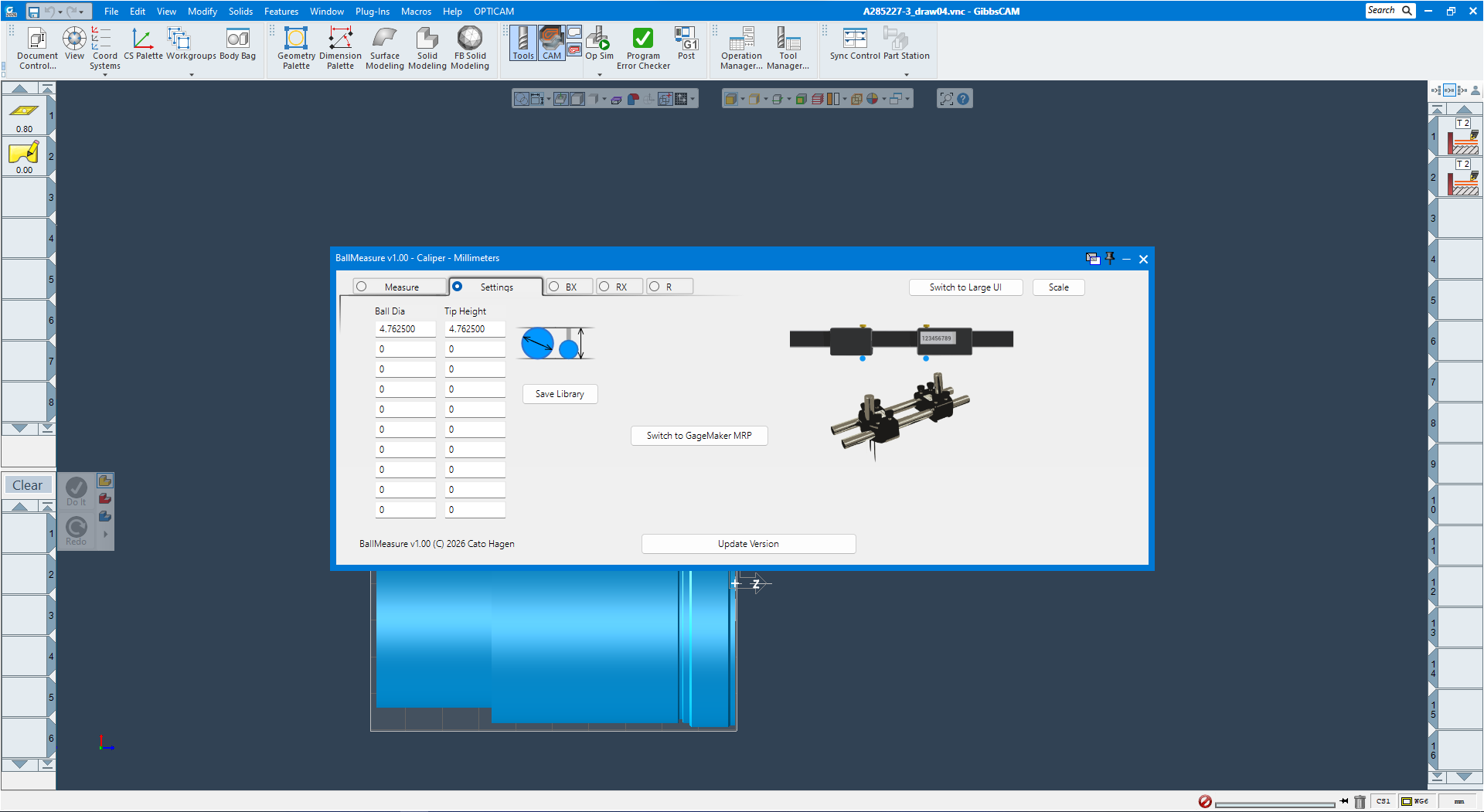

• Ball library with 10 configurable ball configurations
• Seperate inch and metric mode, seperates all data files.

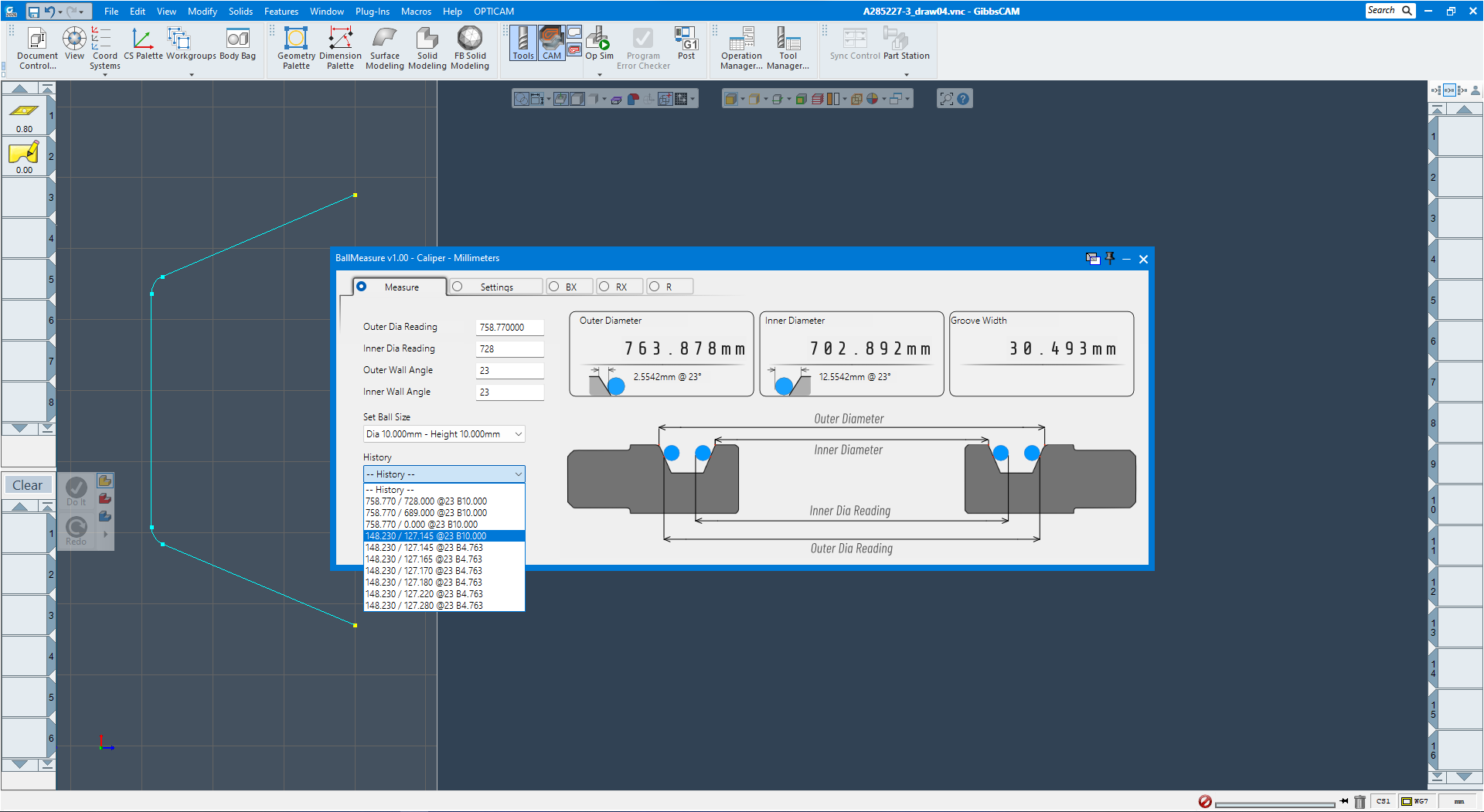

• Measurement history, remembers the 10 last measurements

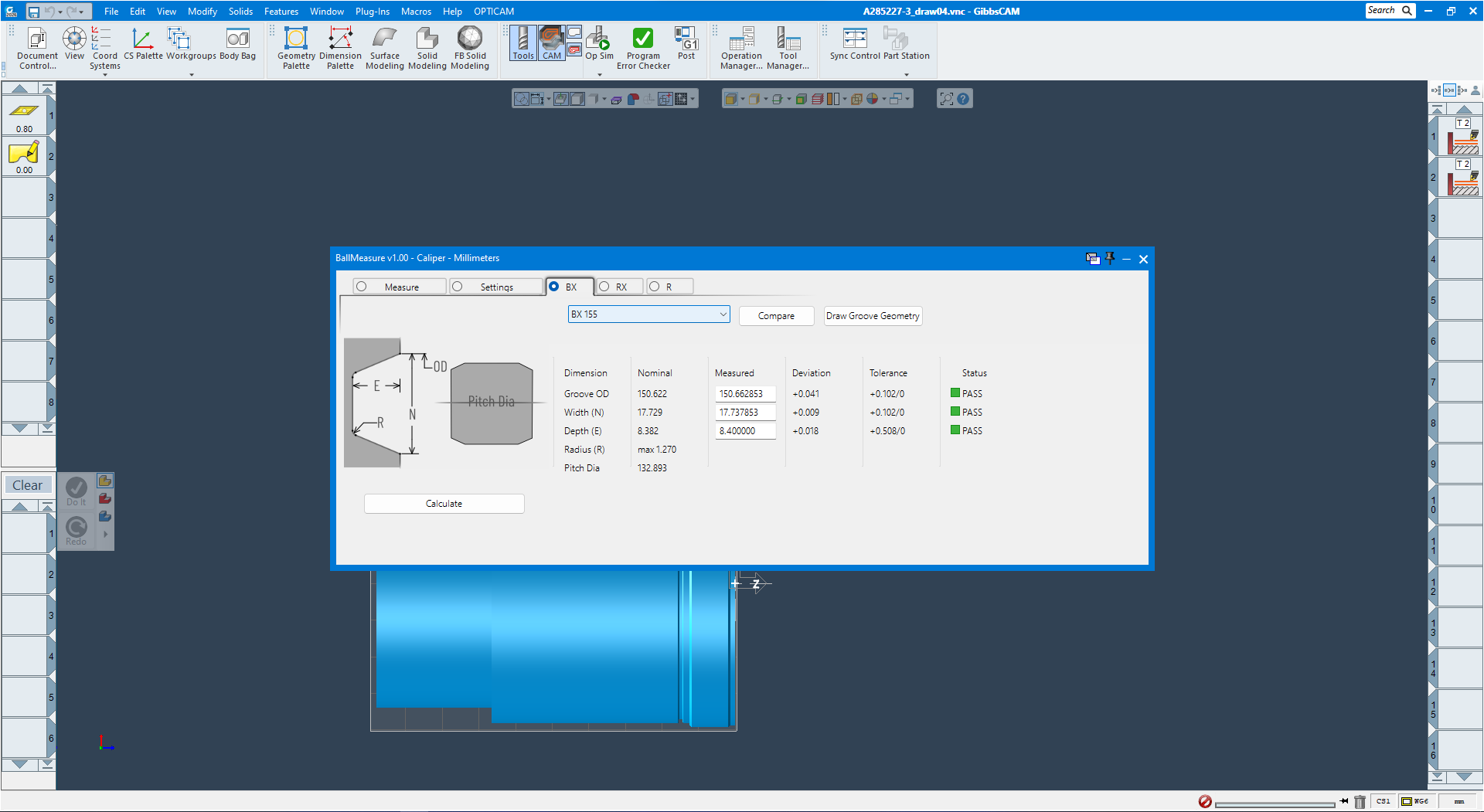

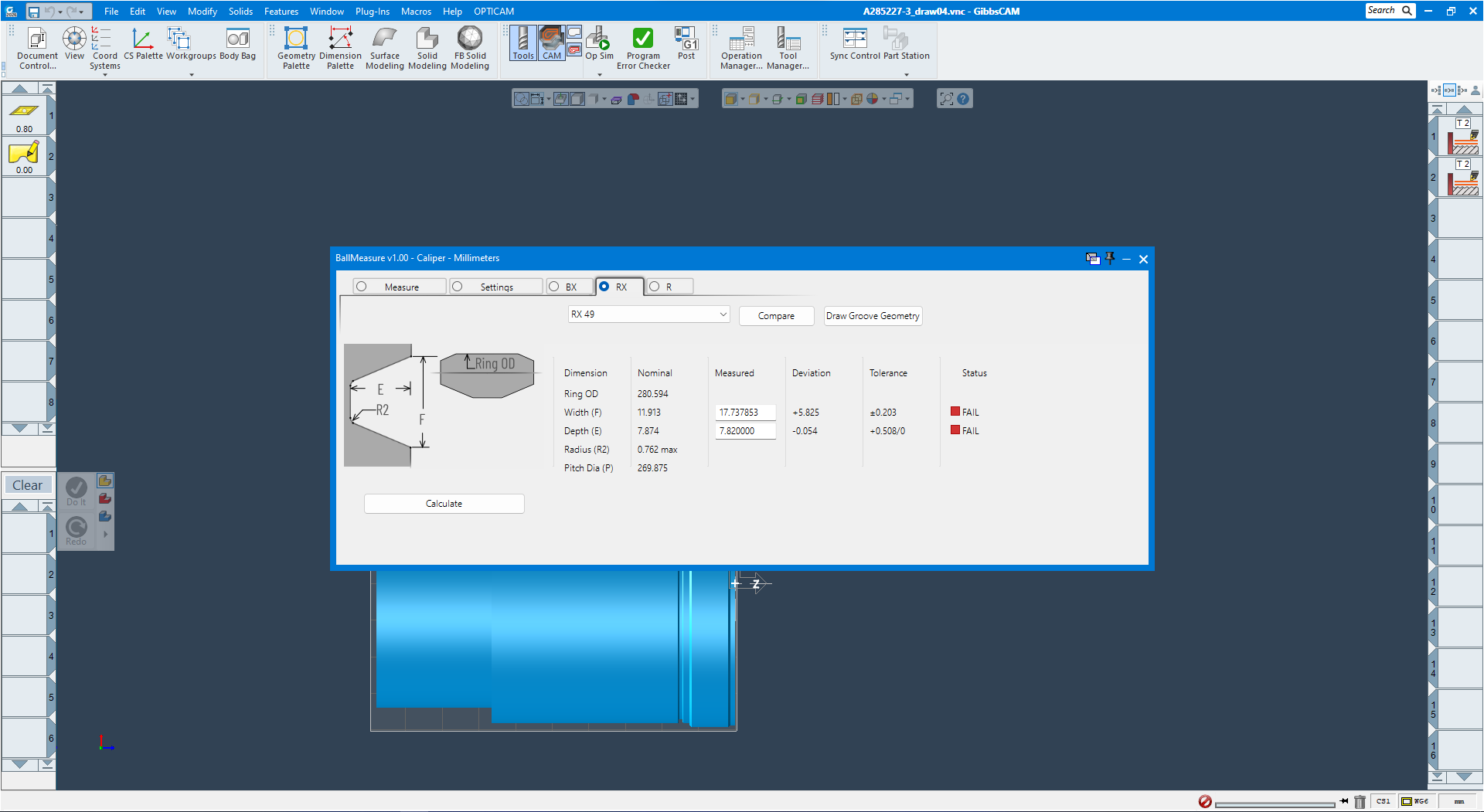

• Includes complete data for BX, RX and R ring grooves for quick reference lookup

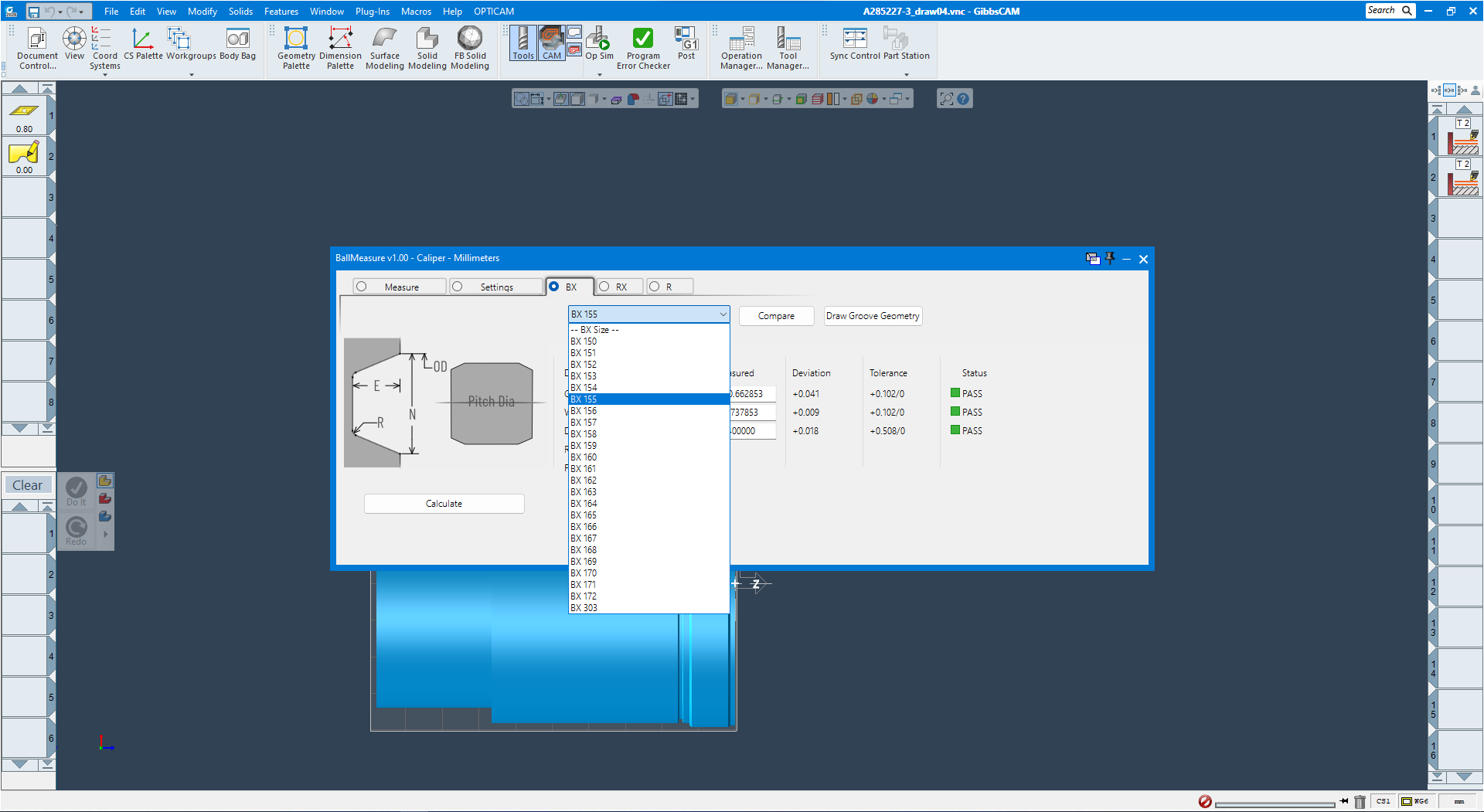

• BallMeasure can draw geometry for all standard BX and RX grove sizes directly into GibbsCAM.

NEWDownload BallMeasure v1.00 [ZIP]NEW

( BallMeasure for GibbsCAM • 1160 KB • ) - Requires GibbsCAM v14.0.6 or later. BallMeasure installs as a normal macro plugin in GibbsCAM.
